Xtreme Power UPS Maintenance
At ORE Power, we are a certified Authorized Service Provider for Xtreme Power UPS systems, delivering expert maintenance, repairs, and preventative service across the entire Xtreme Power product line, including the Xtreme Power M90U, X90, and M90S series. Our factory-trained technicians follow OEM-approved procedures, use genuine Xtreme Power UPS parts, and perform detailed inspections, testing, and battery evaluations to ensure your critical power infrastructure stays protected.
Whether you require routine UPS maintenance, on-site repairs, or emergency UPS service, ORE Power provides reliable, fast-response support to keep your Xtreme Power UPS operating safely and at peak performance.
Xtreme Power’s lineup includes single-phase UPS systems from 1 kVA to 24 kVA and three-phase 208V and 480V UPS from 10 kVA to 700 kVA, designed for applications ranging from commercial facilities and data centers to industrial plants and mission-critical environments. Whatever Xtreme Power UPS you depend on, ORE Power has the expertise to support it.
Xtreme Power X90-2S
Power Range: 50 - 140kVA
Input: 480V three phase
Output: 480V three phase
​
The Xtreme Power X90-2S is a scalable, modular 480 V online double-conversion UPS designed for critical infrastructure and high-availability environments.
Built around 50 kW or 70 kW power modules, the X90-2S supports capacities up to 140 kW and features hot-swappable power and battery modules for simplified maintenance and maximum uptime.
This integrated system includes internal batteries and front maintenance bypass in a single compact cabinet — offering the smallest footprint in its class with no rear clearance required.
Ideal for data centers, industrial control systems, medical imaging, and modular IT installations that demand high performance, scalability, and serviceability.
Xtreme Power X90-5S
Power Range: 50 - 350kVA
Input: 480V three phase
Output: 480V three phase​
​
The Xtreme Power X90-5S is a scalable, modular online double-conversion UPS that delivers clean, reliable power for mission-critical applications.
Designed for enterprise data centers, industrial automation, and healthcare, the X90-5S provides high-efficiency performance and true modular scalability in a compact 480 V architecture.
Built around 70kW hot-swappable power modules, the system scales from 50kW to 350kW.
The X90-5S pairs with the X90-BC external modular battery cabinet (or other compatible battery systems) for flexible runtime configuration and may include an optional SMB-350 slim maintenance bypass cabinet for seamless service without downtime.
​
Xtreme Power X90-10S
Power Range: 50 - 700kVA​
Input: 480V three phase
Output: 480V three phase
The Xtreme Power X90-10S is a high-capacity, modular 480 V UPS engineered for enterprise-class data centers and industrial environments requiring scalable, redundant power.
Built on the proven X90 modular platform, the X90-10S extends system capacity up to 700 kW, combining 50kW or 70kW hot-swappable power modules, high-efficiency operation, and N+1 or 2N redundancy within a flexible architecture.
​
The system supports external modular battery cabinets (X90-BC) for customizable runtime, and integrates with the SMB-700 slim maintenance bypass cabinet for safe service and isolation. With top or bottom cable entry, front-access design, and Energy Star efficiency, the X90-10S delivers robust, scalable protection for modern, power-dense facilities.
​
Xtreme Power M90C
Power Range: 5 - 24kVA
Input: 208V three phase
Output: 208V three phase
​
The Xtreme Power M90C-6S is a fully TAA compliant modular UPS, engineered for mission-critical federal, defense, enterprise, and industrial applications that demand secure, scalable three-phase power in a compact form factor. Its six-slot chassis allows a mix of power modules and hot-swappable battery modules—supporting up to three power modules while using remaining slots for battery runtime expansion (for example, 3P+3B, 2P+4B, or 1P+5B). This modular flexibility enables capacity scaling, enhanced runtime, or N+1 redundancy without replacing the frame.
​
Operating at 208/120 V three-phase, the unit delivers a unity power factor (1.0 PF, kVA = kW) and up to 98% ECO mode efficiency, minimizing energy and cooling costs. An integrated maintenance bypass simplifies servicing while optional receptacle panels enable custom output configurations—all in a compact rack or tower install package.
Xtreme Power E91
Power Range: 10 - 40kVA
Input: 208V three phase
Output: 208V three phase
​
The Xtreme Power E91 UPS provides reliable three-phase double-conversion power protection for edge facilities, small data centers, network closets, and industrial control systems.
Featuring a unity output power factor (1.0 PF), the E91 supports up to 25 % more real power for high-density critical loads.
​
A 4.3″ color touchscreen LCD provides at-a-glance access to system alarms, interactive one-line diagrams, and UPS operating status. External battery cabinets are available to extend runtime as needed. The E91 models are engineered for high reliability, efficiency, and simplified serviceability.
Xtreme Power Li90
Power Range: 10 - 30kVA
Input: 208V three phase
Output: 208V three phase
​
The Xtreme Power Li90 Series delivers industry-leading three-phase power protection in an ultra-slim footprint using advanced Lithium Iron Phosphate (LiFePOâ‚„) batteries. Available in 10 kW, 20 kW, and 30 kW models, the Li90 provides unity power factor output, exceptional efficiency, and up to 15 years of battery life—all in a cabinet just 12.6 inches wide.
​
Engineered for edge compute, automation, industrial controls, and retrofit applications, the Li90 outperforms traditional UPS systems with 3,000–5,000 charge/discharge cycles, high-temperature resilience, hot-swappable lithium battery modules, and integrated maintenance bypass for uninterrupted uptime.
​
Xtreme Power M90S
Power Range: 6 - 48kVA​
Input: 208V single phase
Output: 208V single phase
The Xtreme Power M90S provides scalable single-phase protection in a modular enclosure, delivering up to 48 kW of online double-conversion power. With universal slots, each bay can accept either a power or battery module, giving maximum flexibility to balance capacity and runtime.
The M90S combines hot-swappable modules, integrated maintenance bypass, large LCD monitoring, and redundancy support to deliver reliable protection for mission-critical AV, broadcast, and IT environments.
​
Xtreme Power TX91
Power Range: 3.8 - 10kVA
Input: 208/240/120V single phase
Output: 208/240/120V single phase
​
The Xtreme Power TX91 UPS delivers true isolated online protection with a galvanic isolation transformer, providing the cleanest, most reliable power for demanding and noise-sensitive environments.
​
Unlike transformerless online designs, the TX91 prevents common-mode noise, eliminates ground interference, and provides power conditioning even in bypass mode — ensuring total protection for your most critical systems.
​
Available in 3.8 kVA, 5 kVA, 6 kVA, and 10 kVA models, the TX91 features unity power factor (1.0) and configurable dual output voltages of 240/120 VAC or 230/115 VAC, making it ideal for global and mixed-load installations.
Power Range: 15 - 60kVA
Input: 208V three-phase
Output: 208V three phase
​
The Xtreme Power M90U UPS delivers mission-critical protection with a modular, scalable design that evolves as your power needs grow.
With unity power factor output (1.0 PF), hot-swappable modules, and up to 94% efficiency in online mode (98% in ECO mode), the M90U ensures maximum uptime, simplified maintenance, and the lowest total cost of ownership.
​
Ideal for data centers, hospitals, broadcast studios, hospitality environments, and high-density AV/IT applications, the M90U provides scalable performance and redundancy in a single, flexible platform.
Xtreme Power M90LU
Power Range: 15 - 60kVA
Input: 208V three-phase
Output: 208V three-phase
​
The Xtreme Power M90LU is a scalable modular online double conversion UPS that protects critical data and equipment from power problems while supplying clean and reliable network grade power.
​
M90LU can be configured with a fully redundant power module and long runtime external batteries. Should one module fail, the remaining modules smoothly take over the load. Because the power modules are independent, they can be hot swapped without risk to the critical load. As power requirements change, M90LU modularity makes it easy to add modules and increase capacity.

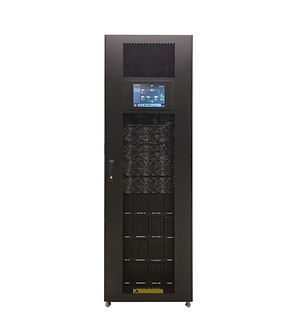

Xtreme Power M90U-80
Power Range: 15 - 80kVA
Input: 208V three-phase
Output: 208V three-phase
The Xtreme Power M90U-80 UPS delivers scalable, modular online double-conversion protection for mission-critical IT and industrial applications.
Combining hot-swappable power and battery modules, unity power factor output (1.0 PF), and an ultra-compact footprint, the M90U-80 provides exceptional reliability and serviceability without sacrificing space efficiency.
​
Available in configurations up to 80 kVA, the M90U-80 offers N+1 redundancy, advanced monitoring through a 10-inch color touchscreen, and flexible dual or single utility input for the highest availability in its class.
​

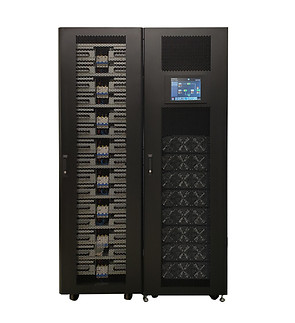

Xtreme Power M90U-140
Power Range: 10 - 140kVA
Input: 208V three-phase
Output: 208V three-phase
​
The Xtreme Power M90U-140 Modular UPS delivers high-capacity, online double-conversion protection for large data centers, enterprise networks, and industrial systems that demand continuous uptime.
With hot-swappable power and battery modules, unity power factor output (1.0 PF), and configurable N+1 redundancy, the M90U-140 ensures unmatched reliability, scalability, and ease of maintenance.
​
Designed to scale from 15 kVA to 140 kVA, this modular platform provides best-in-class efficiency, 10″ touchscreen visibility, and compact footprint flexibility, supporting power growth without system replacement.
Get a Quote
Experiencing issues with your Xtreme Power UPS or looking to schedule professional service?
Our team at ORE Power is ready to help. Get fast answers, expert support, and competitive service solutions—just fill out the contact form below or call us now at 862-263-0258.
