Toshiba UPS Maintenance
At ORE Power, we provide comprehensive Toshiba UPS service and maintenance across their entire UPS product line—from modern systems like the Toshiba G9000, 4400, and 1600XPi, to legacy and discontinued Toshiba UPS models such as the G8000, 4200, and more.
We maintain a direct relationship with Toshiba, allowing us to quickly source OEM UPS parts, perform reliable UPS repairs, and support UPS battery replacements with minimal downtime.
Whether you need preventive maintenance, emergency UPS repair, or new Toshiba UPS system, ORE Power has the expertise, technicians, and resources to keep your unit online. Whichever Toshiba UPS you operate, we can help.
Toshiba G9400
The Toshiba G9400 Series Uninterruptible Power System (UPS) elevates a modular design with exceptional efficiency, reliability, and performance compared to its predecessor the G9000 Series Mega Watt models. Incorporating the latest 7th generation Carrier Stored Trench Bi-Polar Transistor (CSTBT) IGBT technology, the G9400 Series offers high power density within a compact footprint and achieves 97% online efficiency across various loads. The modular design allows for built-in redundancy, making it an ideal choice for large Colocation or Hyper-Scale Data Centers worldwide.
The highly reliable and robust G9000 Series 480V 3 wire + ground monolithic topology UPS comes in model capacities of 100kVA, 160kVA, 225kVA, 300kVA, 500kVA, 750kVA, and 1050kVA. Featuring Toshiba’s advanced IGBT technology in the rectifier/converter, DC/DC chopper, and inverter circuits, the G9000 achieves up to 97% efficiency at 50-100% loads and over 94% on loads down to 20% ideal for N+1 parallel systems. The G9000 supports stand-alone or parallel configurations of up to 4 units (100-225kVA) or 8 units (300-750kVA) without needing special switchgear cabinets a perfect fit for Small to large scale Data Centers.
The G9000 Series includes a highest in the industry three-year onsite warranty.

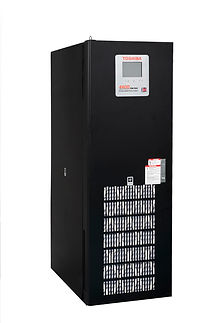

The Toshiba 4400 Series is a top-tier monolithic double-conversion Voltage and Frequency Independent (VFI) 3-phase Uninterruptible Power Supply (UPS) built on advanced technology 208V 4-wire all IGBT PWM input/output topology. The 4400 Series comes in two cabinet sizes: one for the 15, 20, 25, and 30kVA models, and another for the 50kVA model. A wide selection of different input and output voltages are achieved using built-in transformers or matching series auxiliary cabinets. The highly reliable 4400 Series offers total front access with 0” rear clearance and is seismic compliance ready. Application-specific battery backup times are achievable with internal batteries or through the 288VDC battery link. The 4400 Series’ low THD, large voltage and frequency window, and small footprint makes it ideal for continuous critical power needs in small data centers, healthcare imaging and analyzing equipment, light industrial, and manufacturing applications.
Toshiba 3000 SP
The 3000 SP Series UPS is a modular, high-performance Uninterruptible Power System (UPS) designed for reliable backup power in critical applications. Available in 6kVA/kW, 12kVA/kW, 18kVA/kW, and 24kVA/kW capacities, it features online double-conversion topology with Voltage and Frequency Independent (VFI) operation for ultimate power protection. Its modular design allows scalability from 6kVA to 24kVA in 6kVA increments, with hot-swappable power and battery modules for easy maintenance. The 3000 SP Series UPS delivers high efficiency in both online mode and ECO Mode. With the embedded RemotEye® 5 remote monitoring, it offers enhanced visibility and control, making it an ideal power protection solution for small to medium-sized applications.
The Toshiba 1600XPi Series is a versatile, single phase true online, double conversion (and VFI) UPS with true galvanic isolation, hot swappable batteries, and easy to navigate touchscreen LCD. The compact tower design in 3.6kVA, 6.0kVA, 8.0kVA, 10.0kVA, 14kVA, 18kVA, and 22kVA power sizes makes it ideal for all continuous critical power needs used with healthcare imaging and analyzing equipment, building VOIP and PBX networks, industrial controls, retail store data management equipment, and stand-alone IT servers.
The G8000 Series UPS is widely used in the medical industry, where reliable power protection is essential. Offering unity power factor output, it delivers 20% more power than many other UPS systems. It is fully generator compatible, with low input current harmonics that eliminate the need for oversized generators. Its high crest factor makes it particularly well-suited for medical equipment like MRIs and CT scanners, which require handling high current inrush.
The 4200FA Series is a state-of-the-art designed UPS to meet all customers needs. The 4200FA Series has the largest input voltage/frequency window in the industry. This allows the unit to be user friendly to the batteries, thus extending the life of battery. The front end IGBT design allows it to work optimally at 0 to 100% load with less than 3% THD on the input. This allows for one to one sizing of Generator. The 4200FA Series also offers a standard three year warranty. The CT models are designed for internal batteries and internal maintenance bypass design without the need for additional cabinets.
Get a Quote
Experiencing issues with your Toshiba UPS or looking to schedule professional service?
Our team at ORE Power is ready to help. Get fast answers, expert support, and competitive service solutions—just fill out the contact form below or call us now at 862-263-0258.
